Product description

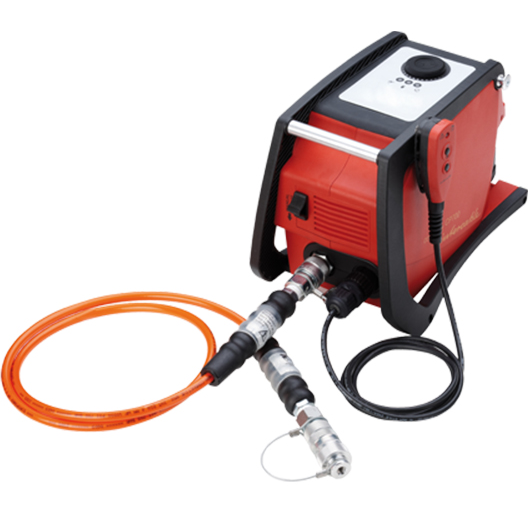

The CP700 battery-powered hydraulic pump from Intercable is designed to power single-acting hydraulic tools (presses or shears) with a working pressure of 700 bar. Compact, robust and ergonomic, it provides electricians and installers with reliable equipment, easy to transport and suitable for demanding site environments.

Main features

• Compact, robust and lightweight construction.
• Ergonomic design for left and right-handed users.
• Practical carrying system with shoulder strap and carrying bag with pockets.
• Integrated scratch-resistant display for real-time monitoring.
• Fast tool return thanks to high return volume.
• Electronic pressure monitoring via integrated sensor.
• High-performance Li-Ion battery with charge level display.
• Dual piston technology for high speed and maximum power.

Technical data

• Nominal pressure: 700 bar (70 MPa)
• Motor power: 200 W
• Power supply: Li-Ion battery 18 V – 3.0 Ah
• Operating temperature: -20 °C to +55 °C
• Low pressure flow rate (<100 bar): 1.15 l/min
• High pressure flow rate (up to 700 bar): 0.1 l/min
• Net weight: 4,6 kg

Control and safety functions

• Automatic standby mode after 5 m minutes of inactivity.
• Start-up and control via the unit or remote control.
• Microcontroller control for greater precision.
• Display of crimping curve (pressure/time) on screen.
• Indication of pressing OK by LED on unit and remote control.
• Complete diagnostics: temperature, battery status, errors, cycles, service.
• Internal memory up to 100 000 cycles, data export via USB.
• Pre-installed programs for crimping or cutting (automatic or manual return).

Equipment included

• CP700 hydraulic pump
• 1,5 m wired remote control
• 1,5 m flexible hose
• USB and software (CD)
• Li-Ion battery 18V 3.0 Ah
• Charger
• Shoulder strap
• Carrying bag with additional pockets

Applications

The CP700 is ideal for operating hydraulic cutting and crimping tools in the electrical, construction and industrial sectors. Its crimping curve display and integrated diagnostic system facilitate traceability and quality control.

To be used with cutting heads and crimping heads Intercable

User benefits

• Time savings thanks to cycle speed and fast return.
• Reliability and repeatability of applied pressures.
• Reduction of MSDs by limiting physical effort.
• Complete traceability of crimping cycles (up to 100 000 operations).
• Easy transport with accessories provided.

3D view

Explore the geometry and handling of the battery-powered hydraulic pump interactive model
