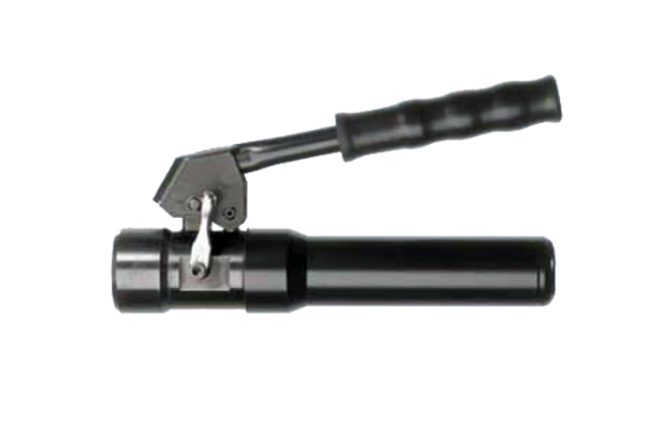

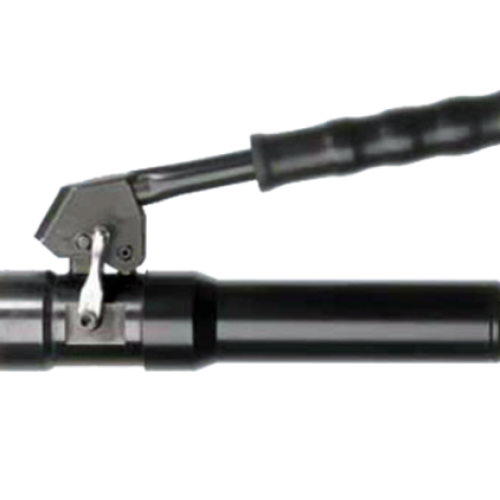

HHP8 Hand Pump

BAUDAT HHP8 HAND Pump.

Industry type

Electrical networks

Brand

Baudat

Request a quote

Request a quote, we will get back to you within N days

Add to quote
  • Free / No obligation
Contact Us

Request a quote

Add to quote

HHP8 Hand Pump

Robust equipment

Time savings

Local after-sales support

Operational safety

Description

BAUDAT HHP Hand Pumps are directly connectable to hydraulic cylinders Punches hydraulic BAUDAT (STAMP5, 10 and 8HD).

BAUDAT HHP9 Hand Pumps: Connection with hydraulic hose or direct connection

  • Operating pressure: preset at 450 bar

  • Useful oil volume: 68 cm3

  • Flow rate: approximately 0,7 cm3/Course

  • Force: 35 kp

  • Dimensions: 240 mm

  • Weight: approximately 1,1 kg

BAUDAT HHP7 Hand Pumps: Connection with hydraulic hose or direct connection

  • Operating pressure: preset at 450 bar

  • Useful oil volume: 68 cm3

  • Flow rate: approximately 0,5 cm3/Course

  • Force: 20 kp

  • Dimensions: 240 mm

  • Weight: approximately 1,1 kg

Compatible with BAUDAT STAMP Cylinders

References:

– HHP9 Connection with hydraulic hose (50-219): 50-088

– HHP9 Direct connection: 50-066

– HHP7 Connection with hydraulic hose (50-219): 50-090

– HHP7 Direct connection: 50-091
