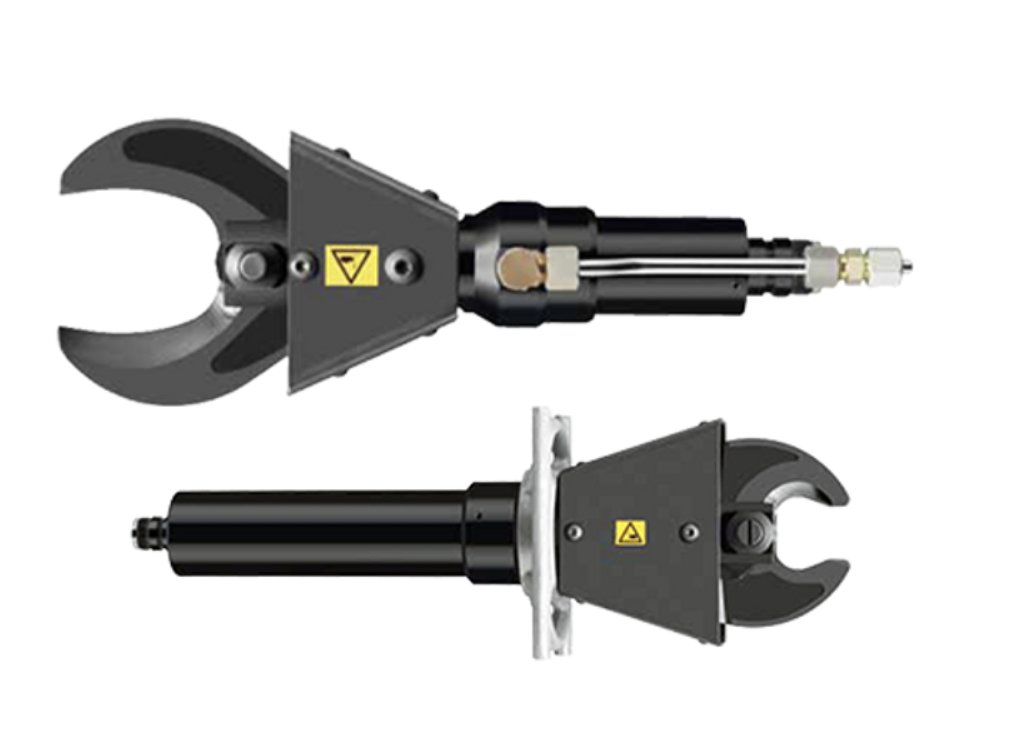

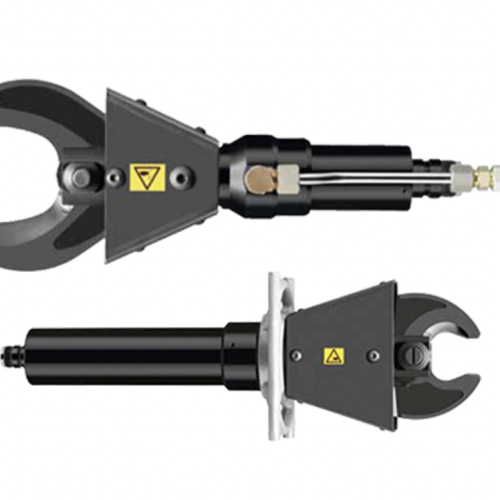

1. BAUDAT HS 3 Hydraulic Cable Cutter
A versatile hydraulic cable cutter designed for cutting all common network cables (Cu/Al, armored, Telecom) up to ø max 60 mm and flexible steel up to ø max 20 mm.
BAUDAT HS range hydraulic cable cutters are equipped with “scythe”-shaped blades.
=> 4 versions available: D-CU / RH-CU / D / RH
- Stroke 46 mm
- Force: 56,5 kN to 450 bar
- Operating pressure: 450 bar
- Useful oil volume: 58 cm3
- Length: 420 mm
- Weight: approximately 4,5 kg
RH version => double-acting with blade reopening by hydraulic flow
- Hydraulic connection
- P: G 1/2 internal thread
- R: M16 X 1.5 external thread with conical housing 24°
D version => single-acting with blade reopening by spring
- Hydraulic connection
- G 1/2 internal thread
2. BAUDAT HS 4 Hydraulic Cable Cutter (D; D-CU; RH; RH-CU)
Very powerful, it has been specifically designed for cutting armored network cables, lead-sheathed Telecom cables and flexible steel.
BAUDAT HS range hydraulic cable cutters are equipped with “scythe”-shaped blades.
=> 4 versions available: D-CU / RH-CU / D / RH
- Stroke 82 mm
- Force: depending on connection with electro-hydraulic unit
- with unit HMP2 420 bar: 127 kN
- with unit HMP3 360 bar: 102 kN
- Operating pressure: 450 bar
- Useful oil volume: 350 cm3
- Length: 590 mm
- Weight: approximately 11 kg
RH version => double-acting with blade reopening by hydraulic flow
- Hydraulic connection
- P: G 1/2 internal thread
- R: M16 X 1.5 external thread with conical housing 24°
D version => single-acting with blade reopening by spring
- Hydraulic connection
- G 1/2 internal thread
3. BAUDAT HS 5 Hydraulic Cable Cutter (D-CU and RH-CU)
It has been specifically designed for cutting large armored network cables, max. diameter 130mm (1 x 2000 mm2)
BAUDAT HS range hydraulic cable cutters are equipped with “scythe”-shaped blades.
=> 2 versions available: D-CU / RH-CU
- Stroke 100 mm
- Force: depending on connection with electro-hydraulic unit
- with unit HMP2 420 bar: 226 kN
- with unit HMP3 360 bar: 181 kN
- Operating pressure: 450 bar
- Useful oil volume: 530 cm3
- Length: 710 mm
- Weight: approximately 30 kg
RH version => double-acting with blade reopening by hydraulic flow
- Hydraulic connection
- P: G 1/2 internal thread
- R: M16 X 1.5 external thread with conical housing 24°
D version => single-acting with blade reopening by spring
- Hydraulic connection
- G 1/2 internal thread
