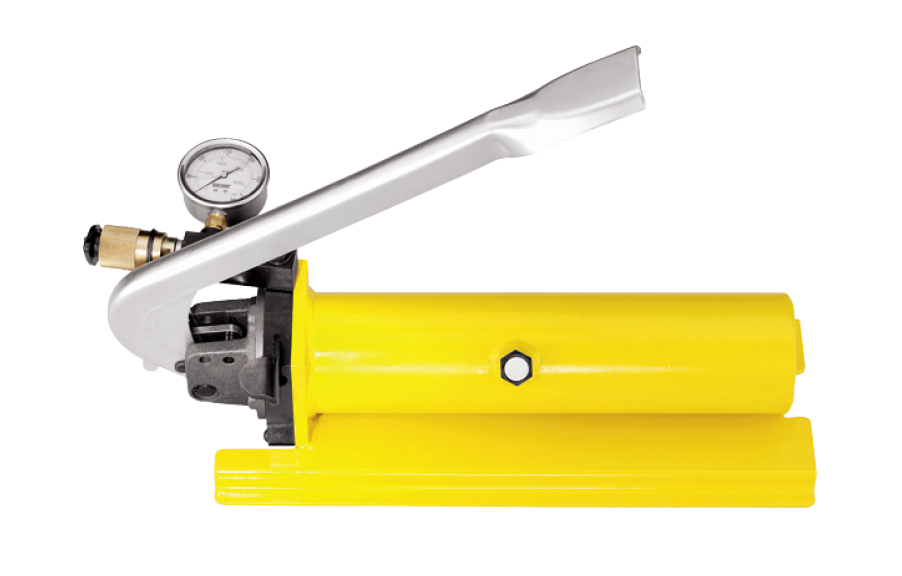

BAUDAT HFP Foot Pumps are directly connectable to hydraulic cylinders Punches hydraulic BAUDAT (STAMP5, 10 and 8HD).
BAUDAT Foot Pumps HFP12: Single Acting
-
Reference: 50-134
-
Operating pressure: preset at 450 bar
-
Usable oil volume: 70 cm3
-
Flow rate: approx. 1 cm3/Course
-
Force: 40 kp
-
Dimensions: 340 mm
- Weight: approx. 3,4 kg
- Anti-tipping safety base plate
- Connection: external thread M16x1, 5 conical housing 24°
BAUDAT Foot Pumps HFP14/22: Double Actingt
- Reference: 50-131
- Operating pressure: preset at 450 bar
-
Usable oil volume: 250 cm3
- Flow rate:
- approx. 5 cm3/Course for low pressure ranges (up to 2 bar)
- approx. 2 cm3/Course for high pressure ranges (from 2 bar)
-
Force: 36 kp
-
Dimensions: 400 mm
- Weight: approx. 4 kg
- Anti-tipping safety base plate
- Female quick coupling CEJN series 115
BAUDAT Foot Pumps HFP3/16: Double Acting
- Reference: 50-012
- Operating pressure: preset at 450 bar
-
Usable oil volume: 1600 cm3
- Flow rate:
- approx. 19,7 cm3/Course for low pressure ranges (80 bar)
- approx. 3,2 cm3/Course for high pressure ranges (450 bar)
-
Dimensions: 530 mm
- Weight: approx. 12 kg
- Anti-tipping safety base plate
- Female quick coupling CEJN series 115
Compatible with BAUDAT STAMP Cylinders
