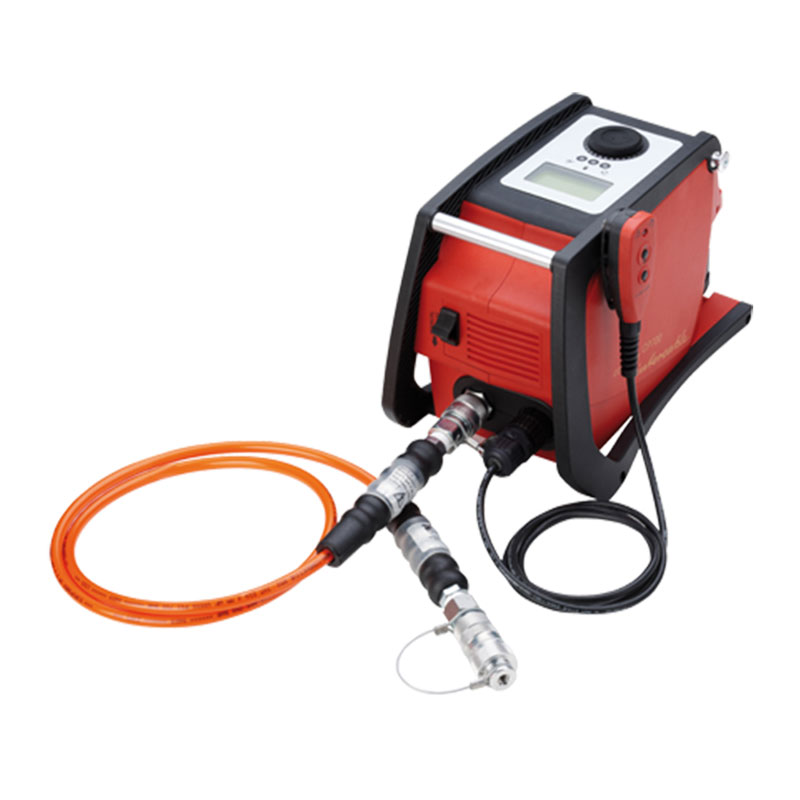

Battery-powered pump for hydraulic cable cutters CP700, designed to work with all Intercable hydraulic cable cutting and crimping heads in 700 bar
- 1.5ml hydraulic hose (3ml on request)
- Control screen
- Supplied in nylon bag with carrying strap
- Battery and charger
- Mains adapter available as an option
- Lightweight, compact and robust structure
- Ergonomic design for left-handed or right-handed users
- Fast piston return, thanks to high return capacity
- Free pressure calibration
- Fully programmable pump
- Electronic sensor pressure control
- High-performance lithium-ion battery
- Charge indicator on the battery
- Dual piston technology for fast high-pressure supply
- Scratch-resistant and shock-resistant protection
- Remote control 1,5 m
- USB cable
Low pressure range <100 bar: 1.2 lit./min. High pressure range (up to 700 bars): 0.2 lit./min. Operating pressure: 700 bars (70 MPa) Power: 200 W Voltage: 18,0 V Battery capacity: 3.0 Ah Operating temperature range: -20 ° C / + 55 ° C (integrated cooling system)
Manual or automatic return
Automatic energy saving mode after approximately 5 min.
LED indicators on the device and remote control (1.5m)
Possibility to save all cycles and error indications in the internal memory and on the PC
Precise pressure adjustment thanks to the electronic pressure sensor and automatic hose compensation
Software included
Integrated maintenance management Weight: 4.5 kg Dimensions: 290 x 190 x 205mm Weight with hose: 7.7 Kg Dimensions with hose: 480 x 250 x 250mm
