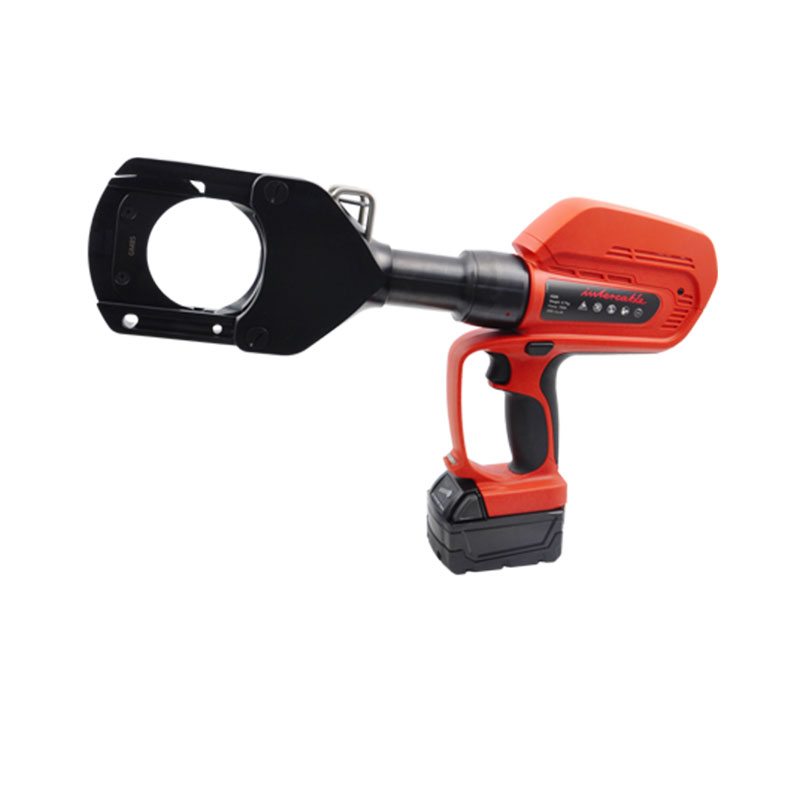

AS 85 Hydraulic Cable Cutter

Application: Aluminum, Copper

Max. diameter: ø 85mm

Force 70 kN

Operating pressure: 700 bar (70 MPa)

Battery: 18 V – 3.0 Ah

SUITABLE FOR LIGHTLY ARMORED COPPER – ALUMINUM CABLES

DOES NOT CUT FLEXIBLE STEEL

3-year warranty or 20.000 cycles

Industry type

Electrical networks

Brand

Intercable

Request a quote

Request a quote, we will get back to you within N days

Request a quote

AS 85 Hydraulic Cable Cutter

Robust equipment

Time savings

Local after-sales support

Operational safety

Description

AS 85 Hydraulic Cable Cutter – Battery-Powered Electro-Hydraulic Cable Cutter Application: Aluminum, Copper Max. diameter: ø 85mm Force: 70 kN Operating pressure: 700 bar (70 MPa) Battery: 18 V – 3.0 Ah SUITABLE FOR LIGHTLY ARMORED COPPER – ALUMINUM CABLES
DOES NOT CUT FLEXIBLE STEEL

3-year warranty or 20.000 cycles
Lightweight and compact structure
Cutting head with carabiner closure – swiveling at 360°
fast cutting with double hydraulic cylinder
variable speed for precise positioning
One-hand pressure release button (on both sides, for left-handed and right-handed operators)
Attachment ring for shoulder strap
Ergonomic handle for weight balancing for easy and safe use
Body, controls and handle in impact-resistant plastic
LED for work area lighting
High-performance LI-ION 18V battery with high capacity and reduced charging time
remaining charge display

Dimensions: 580 x 470 x 115 mm Weight: 7.2 kg (complete case 10.7 kg) Set :

Test report
Battery-Powered Electro-Hydraulic Cable Cutter
Battery 18 V/3.0 Ah Li-Ion (RA11)
Charger (LG8)
Rigid plastic carrying case
Shoulder strap (TG2)
