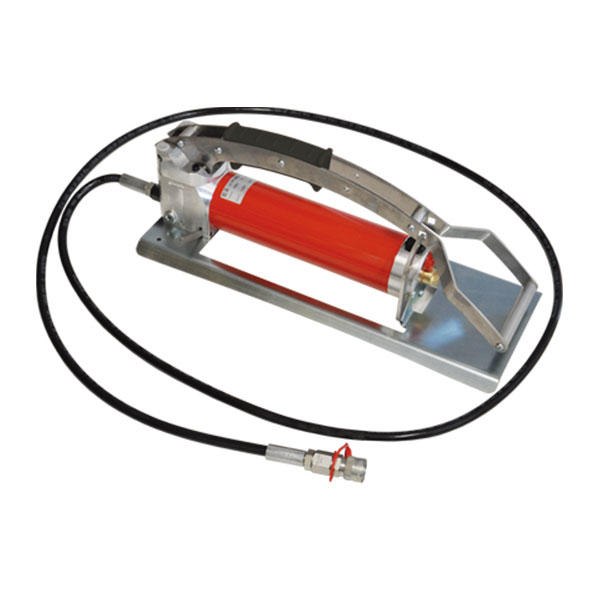

foot pump for hydraulic cable cutter FPI70S EC

Supplied in metal case

Hydraulic hose 3ml

compact and lightweight thanks to the use of light alloys and corrosion-resistant materials

Maneuverable and stable thanks to a well-adjusted pedal and a robust non-slip base

Automatic two-speed device (fast advance without load and slow load)

Possibility of pressure release at any time

Quick coupling with dust cap

Industry type

Electrical networks

Brand

Intercable

Request a quote

Request a quote, we will get back to you within N days

Request a quote

foot pump for hydraulic cable cutter FPI70S EC

Robust equipment

Time savings

Local after-sales support

Operational safety

Description

foot pump for hydraulic cable cutter FPI70S EC, designed to work with all Intercable hydraulic cable cutter and crimping tool heads in 700 bar

Supplied in metal case
Hydraulic hose 3ml
compact and lightweight thanks to the use of light alloys and corrosion-resistant materials
Maneuverable and stable thanks to a well-adjusted pedal and a robust non-slip base
Automatic two-speed device (fast advance without load and slow load)
Possibility of pressure release at any time
Quick coupling with dust cap

Operating pressure: 700 bar Low pressure range: 18,3 cm3/course High pressure range: 2 cm3/course Useful oil capacity: 1200 ml Designed to work in temperature ranges: from -20° C to +40°C Weight: 9.6 kg Dimensions: 545 x 212 x 198mm Weight with case and hose: 24 Kg Dimensions in case: 750 x 300 x 220mm

The foot pump is available alone without the hydraulic hose under reference FPI70 EC
