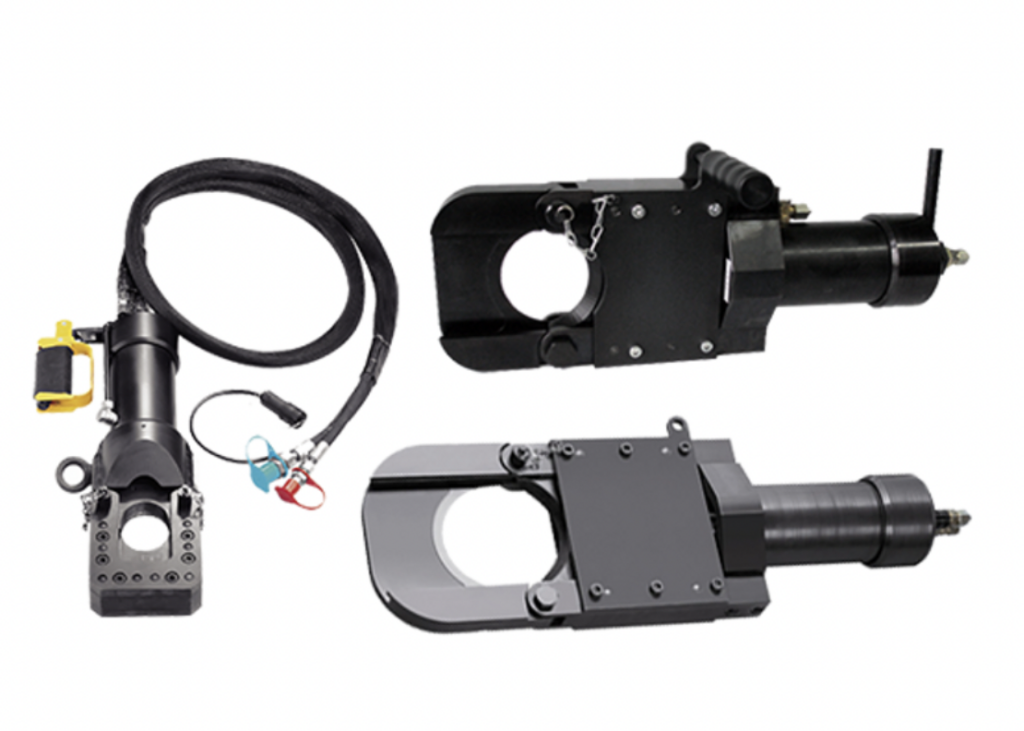

1. KB 10/65 RH. Double-acting with automatic blade return.
A versatile hydraulic cable cutter specifically designed for cutting telecom and network cables (cu/al, armored, lead-sheathed) up to ø max 65 mm and flexible steel cables up to ø max 32 mm.
BAUDAT KB range hydraulic cable cutters are equipped with “Guillotine”-shaped blades.
- Stroke 75 mm
- Load: depending on connection with electro-hydraulic power unit
- with power unit HMP2 450 bar: 106 kN
- with power unit HMP3 360 bar: 86 kN
- Operating pressure: 450 bar
- Useful oil volume: 250 cm3
- Length: 430 mm
- Weight: approximately 15 kg
RH version => double-acting with blade reopening by hydraulic flow
- Hydraulic connection
- P: G 1/2 internal thread
- R: M16 X 1.5 external thread with conical seat 24°
2. BAUDAT KB 20/100 RH hydraulic cable cutter. Double-acting with automatic blade return.
BAUDAT KB range hydraulic cable cutters are equipped with “Guillotine”-shaped blades.
- Stroke 105 mm
- Load: depending on connection with electro-hydraulic power unit
- with power unit HMP2 450 bar: 226 kN
- with power unit HMP3 360 bar: 181 kN
- Operating pressure: 450 bar
- Useful oil volume: 650 cm3
- Length: 590 mm
- Weight: approximately 32 kg
RH version => double-acting with blade reopening by hydraulic flow
- Hydraulic connection
- P: G 1/2 internal thread
- R: M16 X 1.5 external thread with conical seat 24°
3. BAUDAT KB 30/160 RH hydraulic cable cutter. Double-acting with automatic blade return.
BAUDAT KB range hydraulic cable cutters are equipped with “Guillotine”-shaped blades.
- Stroke 197 mm
- Load: 282 kN to 360 bar
- Operating pressure: 360 bar
- Useful oil volume: 1600 cm3
- Length: 870 mm
- Weight: approximately 63 kg
RH version => double-acting with blade reopening by hydraulic flow
- Hydraulic connection
- P: G 1/2 internal thread
- R: M16 X 1.5 external thread with conical seat 24°
4. BAUDAT KB 30/200 RH hydraulic cable cutter. Double-acting with automatic blade return.
BAUDAT KB range hydraulic cable cutters are equipped with “Guillotine”-shaped blades.
- Stroke 220 mm
- Load: 282 kN to 360 bar
- Operating pressure: 360 bar
- Useful oil volume: 1800 cm3
- Length: 1017 mm
- Weight: approximately 94 kg
RH version => double-acting with blade reopening by hydraulic flow
- Hydraulic connection
- P: G 1/2 internal thread
- R: M16 X 1.5 external thread with conical seat 24°
