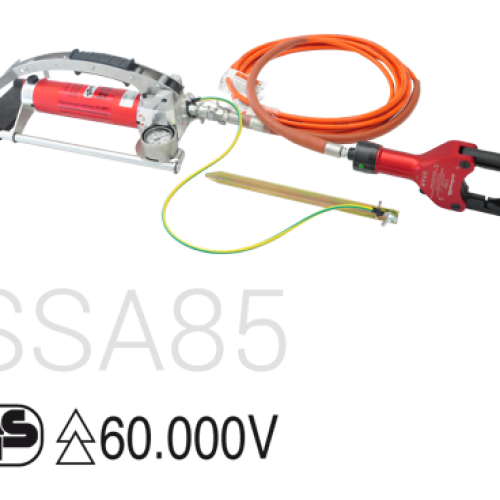

SSA 85 hydraulic cable cutter with cutting head – certifiedGS-ET-23for MV copper and aluminum cables The SSA 85 hydraulic cable cutter for MV cables is a professional tool designed for safe cutting of copper and aluminum conductors up to 110 kV. Tested and certified according to standardGS-ET-23, it guarantees maximum safety during high voltage network operations. Also discover our range of hydraulic tools and the normative references from AFNOR.
Technical specifications:
– Application: non-armored single-core cables up to 110 kV / 60 Hz
– Standard: tested and certifiedGS-ET-23
– Lightweight and compact design facilitating transport and implementation Low weight thanks to the use of lightweight metal alloys and non-corrosive materials Optimal ergonomics: specially designed pedal with non-slip surface for ground stability Fast advance thanks to dual-piston hydraulics Pressure control via integrated pressure gauge Manual return possible in any position if needed Quick coupling with dust cover for simple and safe connection Operating pressure: 625 bar (62,5 MPa) Low pressure flow (< 100 bar): 18,3 cm³/stroke High pressure flow (700 bar): 2 cm³/stroke Tank capacity: 1 200 ml Application range: from-20°C to +40°C
Complete set composition:

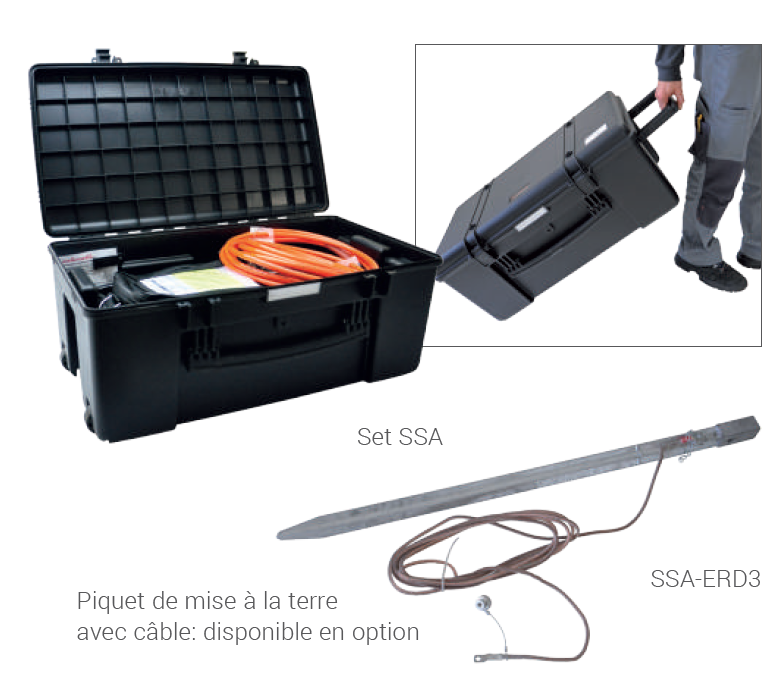

– Complete foot-operated hydraulic pump Grounding stake with connection cable Hydraulic cutting head with high-pressure flexible hose (length 10,5 m) Plastic transport case with integrated handle and wheels for easy movement
– (Option: metal case available on request) Usage advantages:– Enhanced safety thanks toGS-ET-23certification and control pressure gauge
– User comfort with ergonomic pedal and stable construction
– Reduced maintenance thanks to the use of anti-corrosion materials
– Perfect for MV copper/aluminum applications, for network maintenance, and for electrical installation sites
Meta description GS-ET-23 certified hydraulic foot pump for MV cables up to 110 kV. Dual piston, 625 bar pressure gauge, 10,5 m flexible hose, manual return, transport case included.
